MPC-145显微操作系统

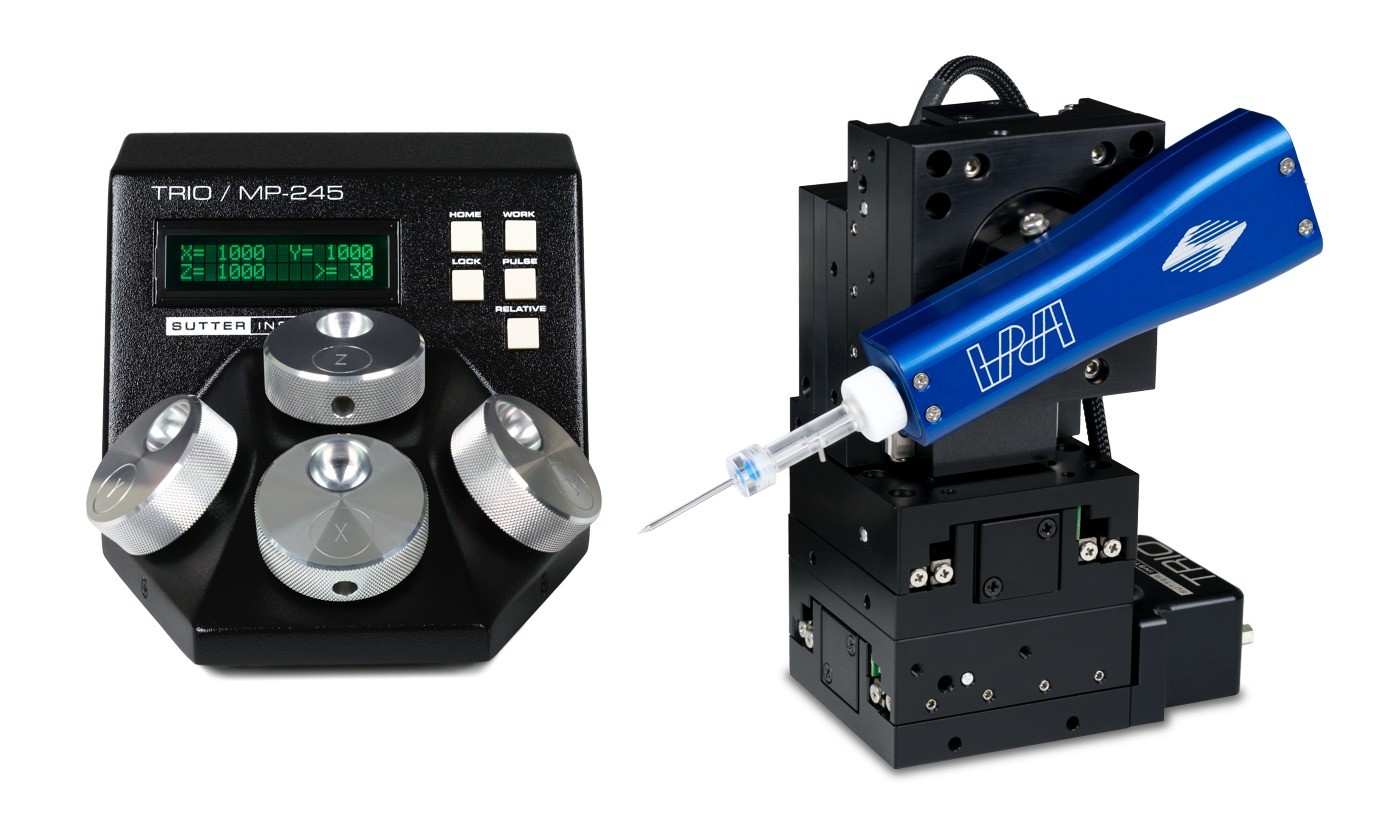

The MPC-145 System consists of the MPC-100 controller and an MP-845 micromanipulator.

MPC-145 系统由 MPC-100 控制器和 MP-845 显微操作器组成。

The new MP-845 micromanipulator features construction based on the lead screw design of the TRIO-245, but with the addition of precision cross-roller bearings for even tighter tolerances. A 25 pin connector insures future compatibility with our other controllers. Available in aluminum or stainless steel (see Stainless MP-845 tab above) the MP-845 is a highly stable 3-axis manipulator with 25 mm of travel on each axis. The TRIO MPC-100 controller gives the MP-845 a synthetic 4th axis that can be set in software to any angle between 0 and 90 degrees for diagonal movement. Based on a lead-screw design with a smaller overall size and footprint than most manipulators, the MP-845 is ideal for applications that require 2 pipettes in one setup or for setups where space is limited.

新型 MP-845 显微操作器的结构基于 TRIO-245 的丝杠设计，但增加了精密交叉滚子轴承，以实现更严格的公差。25 针连接器可确保将来与我们的其他控制器兼容。MP-845 采用铝或不锈钢材质（参见上面的不锈钢 MP-845 选项卡），是一款高度稳定的 3 轴机械手，每个轴的行程为 25 mm。TRIO MPC-100 控制器为 MP-845 提供了一个合成的第 4 轴，可以在软件中设置为 0 到 90 度之间的任何角度，以进行对角线移动。MP-845 基于丝杠设计，整体尺寸和占地面积比大多数机械手更小，非常适合一次设置需要 2 支移液器的应用或空间有限的设置。

The compact design of the integrated Rotary Optical Encoder (ROE) controller requires minimal bench space; provides quiet, fan-free operation; and is easy to use. No rack mounted controller is required. Position coordinates, in relative or absolute values, are displayed directly on the ROE. The TRIO MPC-100 uses a logarithmic acceleration algorithm that eliminates the need for speed selection. As the knobs on the ROE are turned faster, acceleration ramps up. This allows for smooth and intuitive motion control of electrode position without the need to stop and change speeds or lift your hand from the controller. When not moving, the motors are powered down, reducing electrical noise in the system to unmeasurable levels which keeps the motors cool to eliminate thermal drift.

集成旋转光学编码器 （ROE） 控制器的紧凑设计需要最小的工作台空间;提供安静、无风扇的运行;并且易于使用。无需机架安装控制器。位置坐标（以相对或绝对值表示）直接显示在 ROE 上。TRIO MPC-100 使用对数加速算法，无需选择速度。随着 ROE 上的旋钮转动得更快，加速度会加快。这允许对电极位置进行平稳、直观的运动控制，而无需停止和改变速度或从控制器上抬起手。不移动时，电机会关闭电源，将系统中的电气噪声降低到无法测量的水平，从而保持电机冷却以消除热漂移。

Five conveniently located buttons control all the functions you will need in normal operation. Press and hold the [WORK] button to quickly store a work position; pressing [WORK] after this will return the manipulator to the same location. [HOME] sends the manipulator to a second position, often set for a point furthest from the microscope, which is useful for rapid pipette exchange. Pressing [SPEED] allows the selection of one of 4 speed ranges. With practice, there is no need to ever change speeds, however, we have included three low speed ranges for those who work at very high magnification. Holding [SPEED] for three-seconds will lock the knobs out, to prevent accidental movement. Display coordinates can toggle between relative and absolute by pressing the [RELATIVE] button; holding the button down will zero the relative coordinates. Finally, [PULSE] activates a pulse movement mode that produces small, rapid bursts of motion that can be advantageous for cell penetration with sharp electrodes. Hold [PULSE] for three-seconds to set or modify the 4th axis angle between 0 and 90 degrees.

五个位置方便的按钮控制您在正常操作中需要的所有功能。长按【WORK】键可快速存储工作位置;在此之后按 [WORK] 会将操纵器返回到同一位置。[HOME] 将机械手发送到第二个位置，通常设置为离显微镜最远的点，这对于快速更换移液器很有用。按下 [SPEED] 可以选择 4 个速度范围之一。通过练习，无需改变速度，但是，我们为那些在非常高的放大倍率下工作的人提供了三个低速范围。按住 [SPEED] 三秒钟将锁定旋钮，以防止意外移动。显示坐标可以通过按下 [RELATIVE] 按钮在相对坐标和绝对坐标之间切换;按住按钮将使相对坐标归零。最后，[PULSE] 激活脉冲运动模式，产生小而快速的运动爆发，有利于使用尖锐电极穿透细胞。按住 [PULSE] 三秒钟，可在 0 到 90 度之间设置或修改第 4 轴角度。

Designed with maximum flexibility in mind, a DIP switch on the controller changes the directional movement of the ROE knobs to accommodate the preference of the user. A Y-axis lockout function (accessible by DIP switch) is also available, allowing X/Z-only axial movement during HOME and WORK repositioning. The TRIO comes standard with a universal mounting system suitable for the most popular headstages or pipette holders.

控制器上的 DIP 开关在设计时考虑了最大的灵活性，可改变 ROE 旋钮的方向移动以适应用户的偏好。还提供 Y 轴锁定功能（可通过 DIP 开关访问），允许在 HOME 和 WORK 重新定位期间仅 X/Z 轴向移动。TRIO 标配通用安装系统，适用于最流行的头部tage 或移液器支架。

FEATURES: TRIO MPC-100 Controller

特点： TRIO MPC-100 控制器

Controls one or two manipulators

控制一个或两个操纵器

Sub-micron (less than 100 nm) resolution

亚微米（小于 100 nm）分辨率

User selectable angle from 0 - 90 degrees via ROE input

用户可通过 ROE 输入从 0 - 90 度选择角度

Fast movement with a top speed of 3 mm/sec (while homing)

快速移动，最高速度为 3 毫米/秒（归位时）

Compact, fanless, user-friendly ROE controller preserves bench and rack space

紧凑、无风扇、用户友好的 ROE 控制器可节省工作台和机架空间

Push button control of multiple functions - WORK, HOME, LOCK, PULSE and RELATIVE

多种功能的按钮控制 - WORK、HOME、LOCK、PULSE 和 RELATIVE

DIP switches on ROE select direction of movement produced by turn of ROE knob

DIP 打开 ROE 选择转动 ROE 旋钮产生的运动方向

USB interface for computer control

用于计算机控制的 USB 接口

FEATURES: MP-845 Mechanical

特点： MP-845 机械

Now also available in thermally stable stainless steel (See tab above)

现在还提供热稳定不锈钢材质（参见上面的选项卡）

Mechanically robust construction for high stability

机械结构坚固，稳定性高

Precision cross-roller bearings

精密交叉滚子轴承

Three independent axes - 25 mm orthogonal travel in X, Y and Z

三个独立轴 - 25 mm 的 X、Y 和 Z 正交行程

Carries up to a kilogram

最多可携带一公斤

Suited for in vitro and in vivo electrophysiological recording

适用于体外和体内电生理记录

Universal mounting system for headstage or pipette holder

用于头部载物台或移液器支架的通用安装系统
